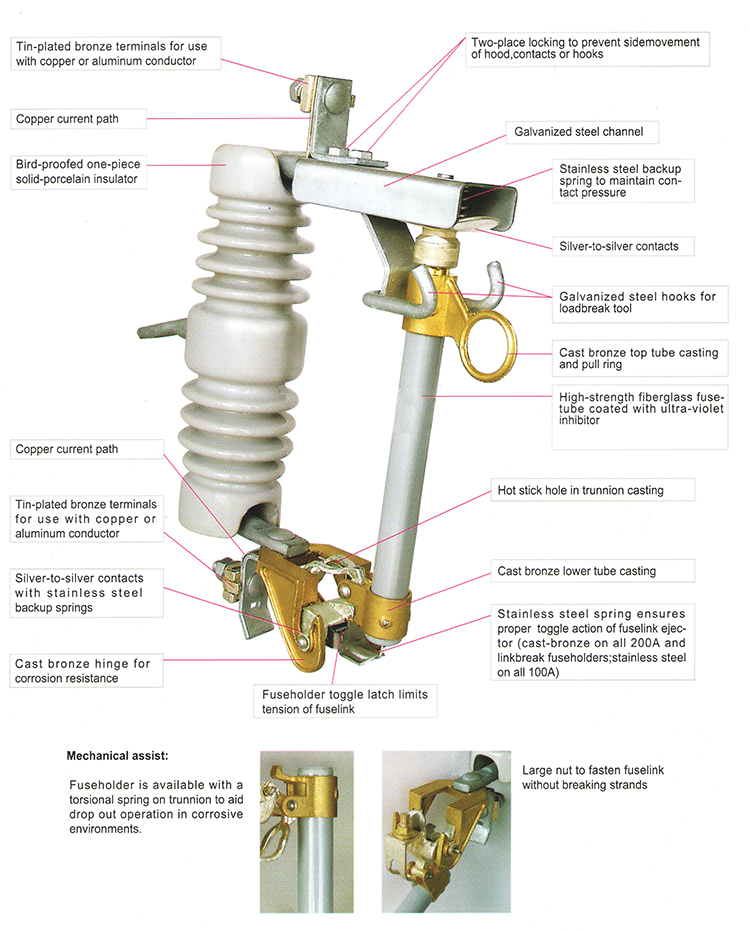

The primary purpose of any Cut-out Fuse is to provide protection to the lines of your system and the various apparatus on those lines such as transformers and capacitor banks. Cutout fuse provide reliable protection from low-level overloads that just melt the fuse link, intermediate faults, and very high faults, through maximum interrupting capacity.

Online orders

Application

Type	Rated Voltage	Rated Current	Breaking Current	Impulse Voltage	Power-frequency withstand voltage	Leakage distance
Type	(kV)	(A)	(BIL)	(kV)	(mm)	(kg)
SM-1	12	100	6.3	110	40	250
SM-1	12	200	8	110	40	250
SM-2	15	100	10	125	45	320
SM-2	15	200	12	125	45	320
SM-3	24	100	8	150	65	530
SM-3	24	200	10	150	65	530
SM-4	15	100	10	125	45	350
SM-4	15	200	12	125	45	350
SM-5	12	100	6.3	110	40	250
SM-5	12	200	8	110	40	250
SM-6	15	100	10	125	45	320
SM-6	15	200	12	125	45	320
SM-7	24	100	8	150	65	540
SM-7	24	200	10	150	65	540
SM-7(F)	33	200	12	170	70	720
SM-8	33	100	10	170	70	720
SM-8	33	200	12	170	70	720
