SGB(H)10 6~10KV Environmentally Friendly Dry-type Transformer

Range of Application

     SGB(H) 10 type (insulation class: H) dry-type power transformer features great impact withstand

capacity and great overload withstand capacity. It is of small volume, high quality and low partial discharge, fireproof, moisture-proof, dustproof, low-loss, low-noise, free of harmful gas, environmentally friendly and easy to maintain. Therefore this type is most suitable for moist and dirty locations of wide load change range and fire-proof requirements such as airport, power plant, metallurgy, hospital, high building, shopping center,

intensive residential district, petro-chemical plant, nuclear submarine., Etc

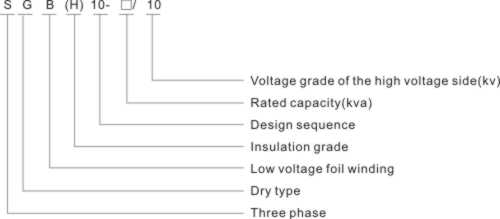

Model Definition

Ambient ConditionsMounting height: ≤1000M

Power supply voltage wave: sine wave

Symmetry of multi-phase power supply voltage: power supply voltage

of multi-phase transformer should be symmetrical

Ambient temperature:

Highest temperature: 40°C

Highest daily average temperature: 30°C

Highest annual average temperature 20°C

Lowest temperature: -30°C (applied to indoor transformer)

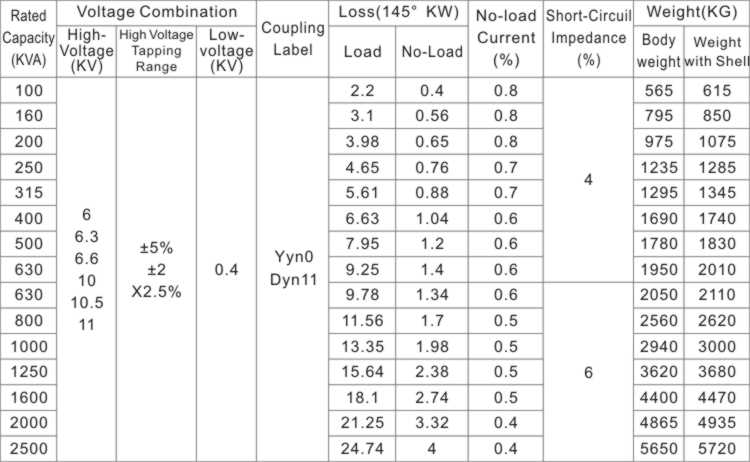

Specifications
