JVM1(CM1) Series Moulded Case Circuit Breaker
JVM1 series moulded case circuit breaker is one of products developed andmanufactured by
adopting international advanced technology.It is supplied with rated insulating voltage 800V and
used for circuit of A.C.50Hz, rated operating voltage AC 400V (or below),rated operating current
up to 800A for infrequent changing over and starting of the motors. The products con-forms to
IEC 60947-2 stamdard.

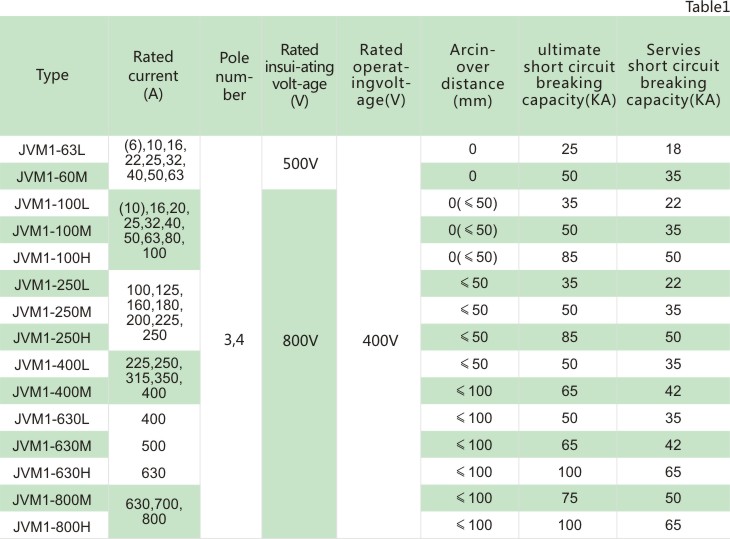

Specifications
Protection Characteristic

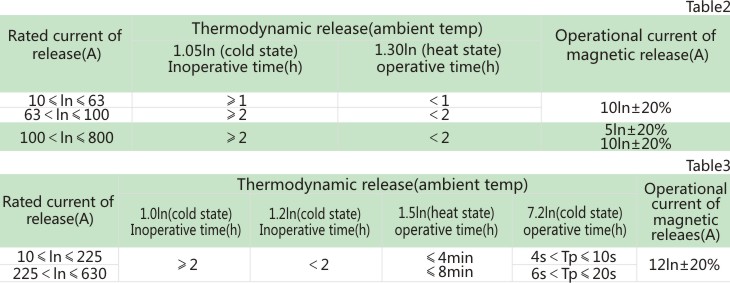

The thermodynamic release of a circuit breaker provides the feature of inverse time-delay,while the magnetic release is the instantaneous operation as shown on table 2(distribution circuit breaker) and table2 (motor protection circuit breaker).
