JVM3 Series Moulded Case Circuit Breaker

Time：2018-08-05 15:02:14

Clicks：

Category：molded case circuit breaker

Hotline：0577-62870351 62870352 62877358

Detailed：

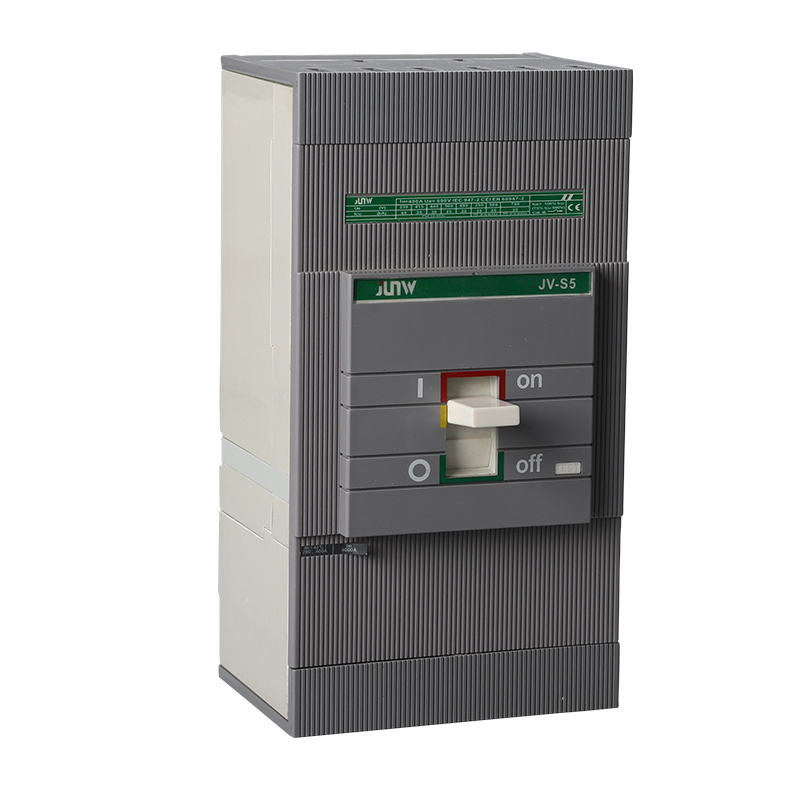

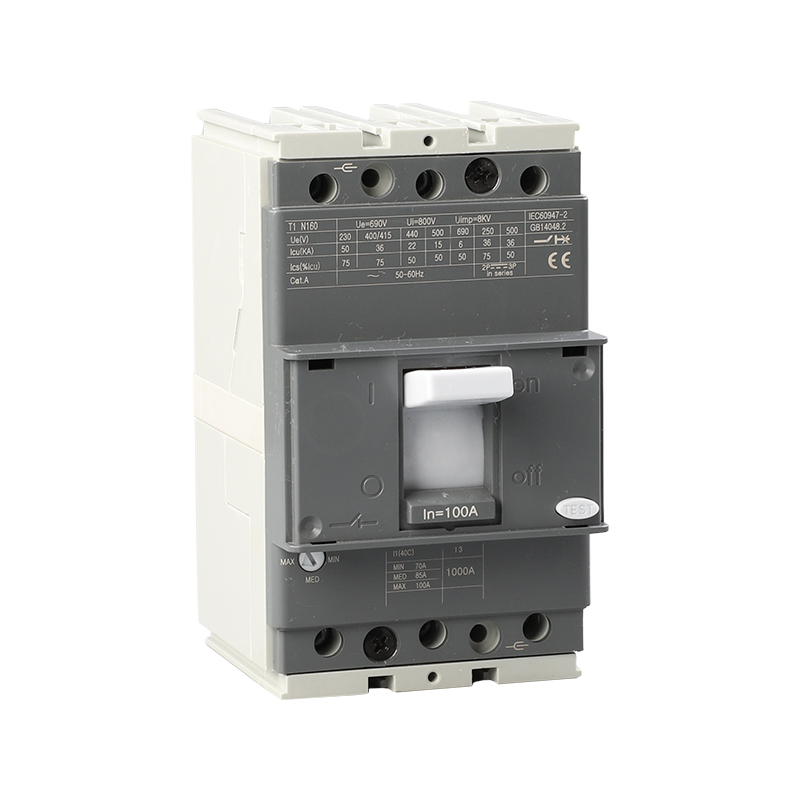

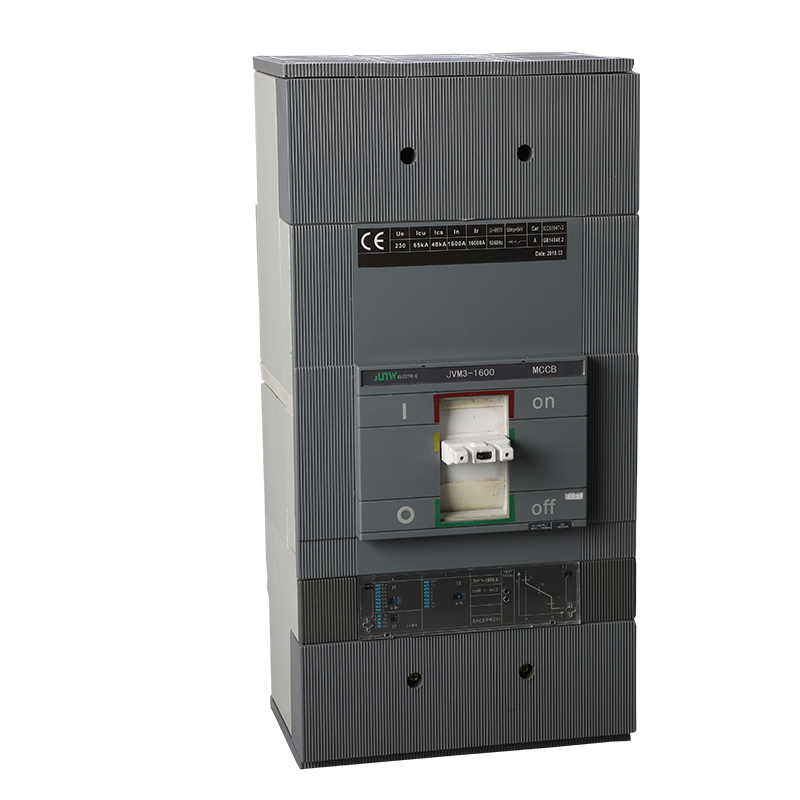

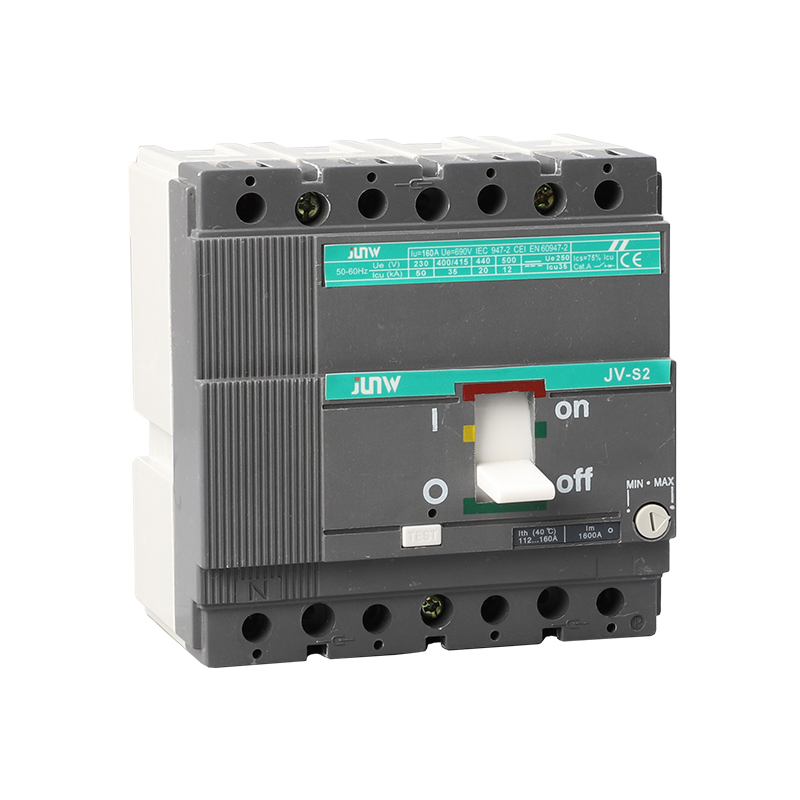

JVM3(ISOMAX) Series Moulded Case Circuit Breaker

JVM3 series moulded case circuit breaker, it's applicable circuit of AC 50Hz(or 60Hz), rated

insulation voltage 690V(JVM3-125 500V), rated operating voltage AC 690 or below, rated

operating current 12.5-800A,for distribute energy of electric and infrequent making and breaking

circuitin normal condition. The circuit-breakers are provided with the function of the protection

againstoverload and short circuit and under-voltage. The circuit breakers comply with standard of

IEC60947-2. The circuit breakers are douple insulating(lnm=400Aor above),the control circuit of

the accessories is set apart with the main circuit, and doesn't need to open the cover of the circuit-

bresker when install the accessories.
