Motor Protect Circuit Breaker

JV2(GV2)Series Circuit Breaker

Time：2018-08-13 15:14:55

Clicks：

Category：Motor Protect Circuit Breaker

Print this page

Hotline：0577-62870351 62870352 62877358

Detailed：

JV2(GV2)Series Circuit Breaker

Online orders

Application

JV(GV2) series circuit breakers are mainly used for the overload and short．circuit prot-ection for motors in the circuit ofAC 50/60Hz．rated operating voltage up to 660V rated operating current from 0.1Ato 80A as the full-voltage starters to start and cut off motors under the Ac3 load and for the circuit protection in the circuit of 0.1 A-80A.

GV2 Circuit breakers

Dimension & Mounting Size

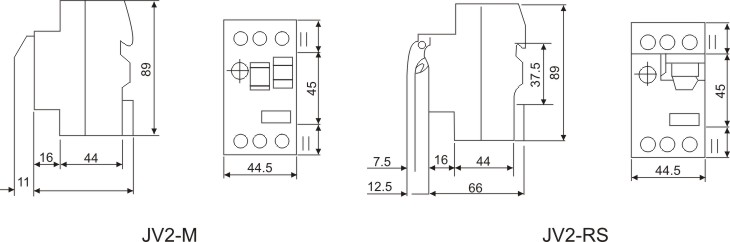

The outline and fixing dimension of breaker(GV2 motor circuit breaker)

The breaker(GV2 motor circuit breaker)adopts the standard conductor rail installtion，the conductor rail shouId meet the A2 1 TH35-7 tvDe installation standard of Jb6525.
